Rivet Nut USA Part Numbers 4090 & 4090P
Bollhoff Part Numbers P2007 & P2007PN
Style: Pull-to-Pressure Pneumatic/Hydraulic Setting Tool
Capacity: Medium-to-High Volume Production

4090: $2,000+ | 4090P: $3,500+
Get A Quote!
Many in-stock tool options to fit all needs & budgets!
Pricing varies by style, setup, and quantity.

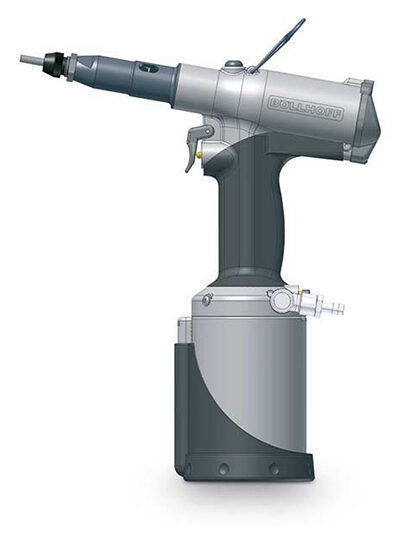

Cardinal’s 4090 (4090P for PLUSNUT® applications) is the most versatile, user-friendly and ergonomic pull to pressure rivet nut gun on the market. Please read our customer testimonials or ask us to email you a customer testimonial! Cardinal’s 4090 is also known as Bollhoff’s P2007 pneumatic installation tool (Cardinal’s 4090P is Bollhoff’s P2007PN). The 4090 is typically used to install rivet nuts, Bollhoff RIVNUTS®, small PLUSNUTS® & RIVSTUDS®. (Ask for the 4090P tool, if you need to install Bollhoff PLUSNUTS®.) “Pull to Pressure” allows the user to initially set-up the tool to a predetermined installation force. The tool will properly and consistently install every rivet nut, even including if the material thicknesses varies from install to install. “Pull to Pressure” greatly reduces the risk of bad installs. To ensure you are outfitted with the correct tool for your application and fastener, please call or email us with your details!
- Step 1: The fastener will auto-feed onto the installation tool.
- Step 2: A single trigger pull will complete the entire installation sequence.
- Step 3: The tool will automatically reverse out of installed fastener.
- Cycle Time: Up to 30 installs per minute.
- Ergonomic grip and balance for operator comfort (additional ergonomic accessories available, just ask!)
- Pull Force: 4,700 lbf or 21 kN (14 kN for the 4090P tool).
- Stroke: .275 in or 7 mm (14 mm for the 4090P tool).
- Manufacturer Part Number: Bollhoff P2007 (Cardinal 4090) & Bollhoff P2007PN (Cardinal 4090P).
- Air Pressure: Regulate to 87 PSI (6.0 Bar) of clean dry air for best operation.
Unified & Metric Thread Capabilities:
4090 Rivet Nut Installation Tool
Unified Rivet Nuts: 4-40, 6-32, 8-32, 10-24, 10-32, 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24
Metric Rivet Nuts: M3, M4, M5, M6, M8, M10
4090P Rivet Nut Installation Tool
Unified Rivet Nuts: 4-40, 6-32, 8-32, 10-24, 10-32, 1/4-20, 1/4-28, 5/16-18, 5/16-24
Metric Rivet Nuts: M4, M5, M6, M8, M10
Unified Plusnuts®: 4-40, 6-32, 8-32, 10-24, 10-32, 1/4-20, 1/4-28, 5/16-18, 5/16-24
Metric Plusnuts®: M4, M5, M6, M8
- Mandrel & Anvil required for each thread size. These are considered consumables of the tool, please keep backup(s) on hand!
- Please consult us on your exact fastener and application to assure you invest in the most capable tool for the job.
- Note: Material type of fastener is critical. Example: Install tool may be set up for a 1/2-13 rivet nut, but tool is only capable of installing a soft aluminum 1/2-13 rivet nut, and can not install a harder steel or hardest stainless steel 1/2-13 rivet nut. A heavier duty tool would be required to install the harder steel or hardest stainless steel 1/2-13 rivet nut. Call us with questions!
Testimonial:
“Thank you for your service and support of your tools. This has been a great decision to switch over to your RIVNUT® installation tools.”
Resources:
- 4090 Tool Manual
- 4090 Tool Accessories & Spare Parts Manual
- 4090P Tool Manual
- 4090P Tool Accessories & Spare Parts Manual
- Vertical Kit for Tool Balancer Informational PDF– Great for permanent production cells and ergonomic usage for effortless installs
Videos
Video showcasing the Speed of the 4090! 4 Installs in 25 seconds!
Video of the 4090 In Action!
Another Video of the 4090 In Action!
