Rivet Nut USA™ is proud to offer both structural (heavy-duty) and semi-structural (medium and light-duty) rivets for various applications. We have listed more information below on the various types of rivets with the associated catalog page for further dimensional and performance details on each rivet.

Your technical sales engineers are available at Rivet Nut USA, just give us a call or send us an email. We typically revert quotes SAME DAY. Remember to ask us about the right installation tool for your structural blind rivet!

RivetKing® Structural Blind Rivets Catalog Information

StemLock™: Steel / Aluminum

StemLock™ fasteners are advanced structural blind rivets that have among the highest shear and tensile values available because the mandrel is locked into the shear plane. The internal locking mechanism ensures positive mandrel retention and will break flush with the head. This is considered a structural heavy-duty rivet. This blind rivet is perfect for thin, soft, or brittle material, or imperfect holes. The body diameter of the StemLock™ is ¼”. Available in multiple grip ranges, these rivets come in either aluminum or steel. The head is a standard dome head. Other manufacturers might call these an Avdel® Hemlock®, POP® UltraGrip®, or HUCK® Auto-Bulb™.

STMS = All Steel
STMA = All Aluminum

Typical RivetKing® Part numbers:
STMS-0812, STMS-0813, STMS-0814, STMS-0815, STMS-0817, STMS-0818, STMS-0819, STMS-0821, STMA-0812, STMA-0813, STMA-0814, STMA-0815, STMA-0817, STMA-0818, STMA-0819, and STMA-0821.

Click to Open a Catalog Excerpt - RivetKing®
structural blind rivet, structural blind fastener

Tigerbolt®: Aluminum, Steel, or Stainless Steel Internal Locking

Tigerbolts® are structural rivets with an external locking feature. This locking feature is visible after the rivet is installed. The special nose piece that is required to set the rivet creates a small expansion of a shoulder on the mandrel, in a pocket located on the surface of the rivet head. The mandrel is retained within the shear plane yielding high strength under shear loads and the external lock ensures mandrel retention which results in high strength under pullout loads. This is considered a structural heavy-duty rivet. The M-Lock™ and Tigerbolt® have a wide grip range and are offered in two sizes: 3/16” and 1/4”. These rivets come with a standard dome head, and some grip ranges are available with a countersunk head. Available in aluminum, steel, or stainless steel. Note, a special nose piece is required to set these externally locked structural blind rivets. Other manufacturers may also call these an Avdel® MonoBolt®.

A = Aluminum Body
= Dome Head
= Aluminum Mandrel
= Aluminum Body
= Countersunk Head
= Aluminum Mandrel
= Steel Body
= Dome Head
= Steel Mandrel
= Steel Body
C = Countersunk Head
= Steel Mandrel
= Stainless Steel Body
= Dome Head
= Stainless Steel Mandrel
= Stainless Steel Body
= Countersunk Head
= Stainless Steel Mandrel

Typical RivetKing® Part numbers:
ABA-64-TB, ABA-67-TB, ABA-86-TB, ABA-810-TB, ACA-88-TB, SBS-64-TB, SBS-67-TB, SBS-86-TB, SBS-810-TB, SCS-88-TB, FBF-64-TB, FBF-67-TB, FBF-86-TB, FBF-810-TB, and FCF-88-TB.

Click to Open a Catalog Excerpt - RivetKing®
structural blind rivet, structural blind fastener

In-Lock®: Aluminum, Steel, or Stainless Steel Internal Locking

In-Lock® rivets are structural rivets with an internal locking feature. The locking feature is not visible when the rivet is installed. The mandrel is retained within the shear plane, yielding high strength under shear loads. The internal lock assures mandrel retention which results in high strength under pullout loads. This is considered a structural heavy-duty rivet. These rivets are available in aluminum, steel, or stainless steel. The Go-Lock™ and In-Lock® have wide grip ranges and are offered in three sizes: 3/16”, 1/4”, and 3/8”. Comes with standard dome head, some grip ranges available with countersunk head. Other manufactures have referred to these as an Avdel® Interlock®, HUCK® Magna-lok™, Marson® Klik-Lock™, or Gesipa® MegaGrip®.

A = Aluminum Body
= Dome Head
= Aluminum Mandrel
= Steel Body
= Dome Head
= Steel Mandrel
= Aluminum Body
= Countersunk Head
= Aluminum Mandrel
= Steel Body
C = Countersunk Head
= Steel Mandrel
= Stainless Steel Body
= Dome Head
= Stainless Steel Mandrel
= Stainless Steel Body
= Countersunk Head
= Stainless Steel Mandrel

Typical RivetKing® Part numbers:
ABA-64-STR, ABA-67-STR, ABA-67E-STR, ABA-86-STR, ABA-810-STR, ABA-810E-STR, ACA-88-STR, SBS-64-STR, SBS-67-STR, SBS-67E-STR, SBS -86-STR, SBS-810-STR, SBS-810E-STR, SCS-88-STR, SBS-1212-STR, FBF-64-STR, FBF-67-STR, FBF-67E-STR, FBF-86-STR, FBF-810-STR, FBF-810E-STR, and FCF-88-STR.

Click to Open a Catalog Excerpt - RivetKing®
structural blind rivet, structural blind fastener

RivBolt™: Steel / Steel

The RivBolt™ is ideal for high strength blind precision applications in the transportation industry, especially with racking applications. Made of steel, this structural rivet offers very high shear and tensile value with clamp up for vibration resistance. The RivBolt™ is available in four sizes: 3/16”, 1/4”, 5/16”, and 3/8”. Each size has multiple grip ranges. The RivBolt™ structural rivet is considered a heavy duty rivet and will break flush in the proper grip range.

Typical RivetKing® Part numbers:
RB6-2, RB6-3, RB6-5, RB6-6, RB6-7, RB6-8, RB6-9, RB6-10, RB6-11, RB6-12, RB8-2, RB8-3, RB8-4, RB8-5, RB8-6, RB8-7, RB8-8, RB8-9, RB8-10, RB8-11, RB8-12, RB10-4, RB10-6, RB10-8, RB10-10, RB10-12, RB10-14, RB10-16, RB12-4, RB12-6, RB12-8, RB12-10, RB12-12, RB12-14, RB12-16, RB12-18, and RB12-20.

Click to Open a Catalog Excerpt - RivetKing®
structural blind rivet, structural blind fastener

RivetKing® Semi-Structural Blind Rivets Catalog Information

RKQ®: High Strength Open End Self Plugging Blind Rivet

The RKQ® is considered a medium-duty, semi-structural blind rivet and is available in aluminum, stainless steel, or steel clear trivalent zinc plating. The head is dome-shaped. The self-plugging properties of this rivet ensure that the mandrel is locked within the shear plane which results in superior shear and tensile strength. The RKQ®: is available in three sizes: 1/8”, 5/32”, and 3/16”. Each size has multiple grip ranges. The RKQ® semi-structural blind rivets have a grooved, rattle resistant mandrel which breaks flush with the head when installed in the ideal grip range.

S = Steel Body
B = Dome Head
F = Stainless Steel Body
B = Dome Head
A = Aluminum Body
B = Dome Head

Typical RivetKing® Part numbers:
SBQ-42, SBQ-43, SBQ-44, SBQ-52, SBQ-54, SBQ-56, SBQ-62, SBQ-64, SBQ-66, SBQ-68, FBQ-42, FBQ-43, FBQ-44, FBQ-52, FBQ-54, FBQ-56, FBQ-62, FBQ-64, FBQ-66, FBQ-68, ABQ-42, ABQ-43, ABQ-44, ABQ-52, ABQ-54, ABQ-56, ABQ-62, ABQ-64, ABQ-66, and ABQ-68.

Click to Open a Catalog Excerpt - RivetKing®
structural blind rivet, structural blind fastener

Rivex®: High Strength MultiGrip™

The Rivex® is considered a medium-duty semi-structural blind rivet and is the only rivet in the MultiGrip™ family that is offered in stainless steel. (Also offered in steel with clear trivalent zinc plating). Steel parts are available in three head styles: dome, large flange, or countersunk. Stainless steel is available with dome head. Rivex® semi-structural rivets consist of a wider grip range and a higher shear and tensile strength than other MultiGrip’s™. The Rivex® contains an easy entry mandrel head that is grooved and blunt pointed. Available in four body diameters, each having multiple grip ranges. Sizes include: 1/8”, 5/32”, 3/16”, and 1/4 inch. Its design is rattle resistant and will break flush with the head when installed in the ideal grip range. This rivet offers basic leak resistance qualities. Other manufacturers may call this rivet an Avdel® Stavex®.

S = Steel Body
B = Dome Head
S = Steel Mandrel
LF = Long Flange
S = Steel Body
C = Countersunk Head
S = Steel Mandrel
F = Stainless Steel Body
B = Dome Head
F = Stainless Steel Mandrel

Typical RivetKing® Part numbers:
SBS-0414-RVX, SBS-0516-RVX, SBS-0612-RVX, SBS-0614-RVX, SBS-0618-RVX, SBS-0622-RVX, SBS-4844-RVX, SBS-0614LF-RVX, SBS-0618LF-RVX, SBS-0622LF-RVX, SCS-0614-RVX, SCS-0618-RVX, SCS-0622-RVX, FBF-0612-RVX, FBF-0614-RVX, FBF-0618-RVX, and FBF-0622-RVX.

Click to Open a Catalog Excerpt - RivetKing®
structural blind rivet, structural blind fastener

Rivinox®: Stainless Steel High Shear Rear Flange

The Rivinox® is considered medium-duty semi-structural blind rivets that provide for an aesthetic secondary rear flange at the back side of the application. The rivet body and mandrel are stainless steel. Perfect for thin sheet metals or plastics where rivet pullout is of concern. The mandrel will break nearly flush with the head and offers a locked mandrel to prevent vibration. This semi-structural rivet is available in three body diameters: 1/8”, 5/32”, and 3/16 inch. Each size has three different grip ranges each. Note, special sizes may be available upon request. Other manufacturers refer to these as an Avdel® Stavex®.

F = Stainless Steel Body
B = Dome Head
F = Stainless Steel Mandrel

Typical RivetKing® Part numbers:
FBF-0408/RIVINOX, FBF-0411/RIVINOX, FBF-0414/RIVINOX, FBF-0509/RIVINOX, FBF-0512/RIVINOX, FBF-0516/RIVINOX, FBF-0611/RIVINOX, FBF-0614/RIVINOX, and FBF-0618/RIVINOX.

Click to Open a Catalog Excerpt - RivetKing®
structural blind rivet, structural blind fastener

Rivibulb®: All Steel High Shear Rear Flange

The Rivibulb® are considered medium-duty semi-structural blind rivets that provide for an aesthetic secondary rear flange at the back side of the application. The body of this rivet is made of steel with clear trivalent zinc plating and the mandrel is high carbon steel with trivalent zinc plating. This rivet is perfect for thin sheet metals or plastics where rivet pull through is of concern. The mandrel will break nearly flush with the head and contains a locked mandrel to prevent vibration. The Rivibulb® semi-structural blind rivets are available in four sizes: 1/8”, 5/32”, 3/16”, and 6mm. Each size has three grip ranges. Note, special sizes may be available upon request. Rivibulb® rivets have also been known to be called Avdel® AviBulb® rivets.

S = Steel Body
B = Dome Head
S = Steel Mandrel

Typical RivetKing® Part numbers:
SBS-0408/RVB, SBS-0411/RVB, SBS-414/RVB, SBS-0509/RVB, SBS-0512, SBS-0516/RVB, SBS-0611/RVB, SBS-0614/RVB, SBS-0618/RVB, SBS-M6X10/RVB, SBS-M6X13/RVB, SBS-M6X16/RVB, and SBS-M6X19/RVB.

Click to Open a Catalog Excerpt - RivetKing®
structural blind rivet, structural blind fastener

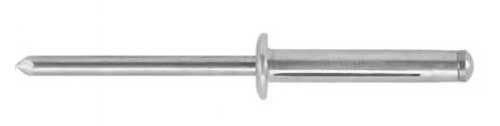

Trifix™: All Aluminum Tri-Folding

The Trifix™ are perfect for inconsistent grip ranges or oversized, out-of-round (oblong) holes that are typical in plastics. The Trifix™ is designed to work like a moly-bolt in that it splits out into three legs at the backside. Its extended bearing surface spreads the load over a wider area to prevent pullout in plastics or other similar soft or thin sheet materials. Tri-Go™ and Trifix™ are painted in white, black and almond colors. Black anodized is also available. The rivet has an aluminum body and an aluminum mandrel. This is considered a light-duty semi-structural rivet and comes in two body diameters: 5/32” and 3/16”. Grip ranges include, but are not limited to, .040″, .157″, .275″, .354″, and .472″. The Trifix™ go by many names with other manufacturers: Avdel® Bulbex®, POP® LSH®, HUCK® Tri-Bulb™, or Gesipa® TriFold.

A = Aluminum Body
B = Dome Head
A = Aluminum Mandrel

Typical RivetKing® Part numbers:
ABL-0516, ABL-0523, ABL-0530, ABL-0619, ABL-0625, ABL-0630, ABL-0640, ABL-0523LF, ABL-0625LF14, ABL-0625LF16, ABL-0523/BA, ABL-0625/WHT, ABL-0625/ALM, ALB-0625/BA, ABL-0630/WHT, ABL-0630/ALM, and ABL-0630/BA.

Click to Open a Catalog Excerpt - RivetKing®
structural blind rivet, structural blind fastener

Super Trifix™: All Aluminum High Strength Tri-Folding

The Super Trifix™ are all aluminum and are designed for use in thin sheet metal or soft materials where strength of the riveted joint is of concern. These are considered a light-duty semi-structural rivet. Super Trifix™ semi-structural rivets offer better shear and tensile strength then that of the standard Tri-fix™. The mandrel stays within the shear plane and breaks flush with the head. A neoprene washer can be affixed under the head to make a weather tight seal. The size of this rivet is 3/16”. Note, 3/16” rivets are made according to a din standard in which the body diameter is actually .205″ (5.2mm). The 3/16” inch designation has been applied as a reference only as the actual rivet is .205″ diameter. Please ensure the hole design is .208 – .221″ to accommodate the rivet. Due to the externally locked mandrel, a special nose piece is required for the installation tool.

A = Aluminum Body
B = Dome Head
A = Aluminum Mandrel

Typical RivetKing® Part numbers:
ABL0623/STFX and ABL0633/STFX.

Click to Open a Catalog Excerpt - RivetKing®

Plastic Trifix®

Plastic Trifix® blind rivets are considered a light-duty semi-structural blind rivet. These are typically used to fasten fabric, as well as plastics, metal, fiberglass, plastic composites, and glass. Produced of black Super tough Nylon and Acetal grade, the Plastic Trifix® semi-structural rivet has been tested for shear/tensile strength and can withstand vibration for the life of the fastener. These plastic rivets are non-conductive, non-corrosive and contain UV inhibitor layer to prevent deterioration. They are available in five body diameters including: .154”, .195”, .234”, .246”, and .258”. Each size is available in multiple grip ranges. Rectangle head style available on .154” size, all other sizes available with protruding head. Countersunk head available on .246” and .258” size.

Typical RivetKing® Part numbers:
APL-R286, APL-D305, APL-D236, APL-D177, APL-D308, APL-D309, APL-D330, APL-L349, APL-L350, APL-351, APL-C353, APL-C354, APL-D385, and APL-L386.

Click to Open a Catalog Excerpt - RivetKing®
