Bollhoff NEO B109 Battery Rivet Nut Tool
Rivet Nut USA™ B4109 Battery Tool

IN STOCK!
Click Here For A Quote

Many in-stock tool options to fit all needs & budgets!

Pricing varies by style, setup, and quantity.

Rivet Nut USA™, a division of Cardinal Components, Inc., is proud to offer our most advanced battery-operated RIVNUT® tool yet, available from Bollhoff, the NEO B109!

The Bollhoff NEO B109, also known as Rivet Nut USA™ B4109, is the ultimate upgrade in our battery-operated tool lineup. The B4109 brings you a full suite of process monitoring (quality control) upgrades when compared to the base B4107 model.  The B4109 has added features like cutting-edge new software (see video, NEOSOFT Software) for process monitoring, improved quality control, and tool panel. The B4109 is designed for industry professionals who demand the best!

Bollhoff introduced the NEO B109 after five years of thorough testing and development. Combining power, precision, and the newest technology, it sets a new standard in the RIVNUT® (or blind rivet nut) installation tooling industry. This model includes everything the B4107 has to offer and more!

NEW Feature: Installation Process Monitoring:

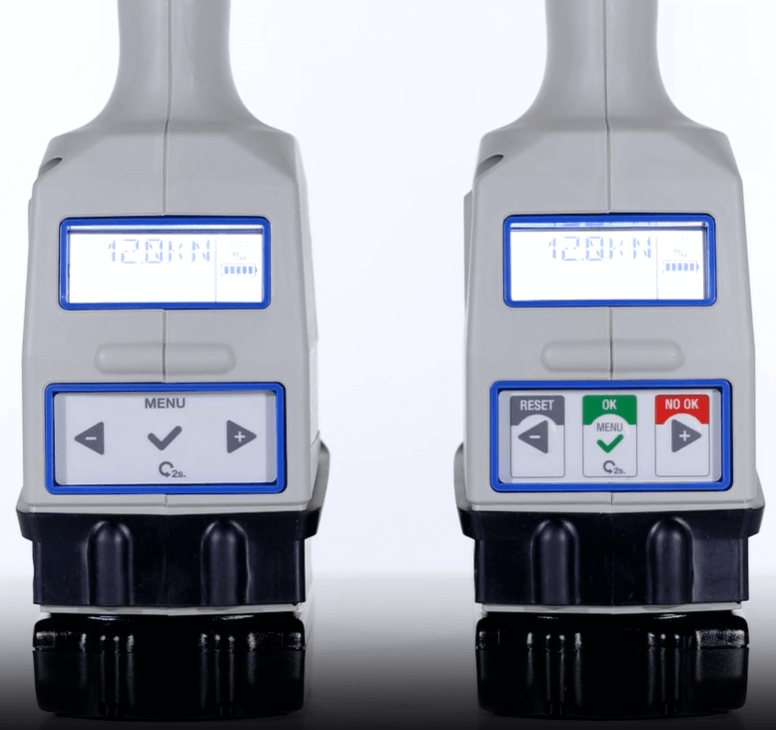

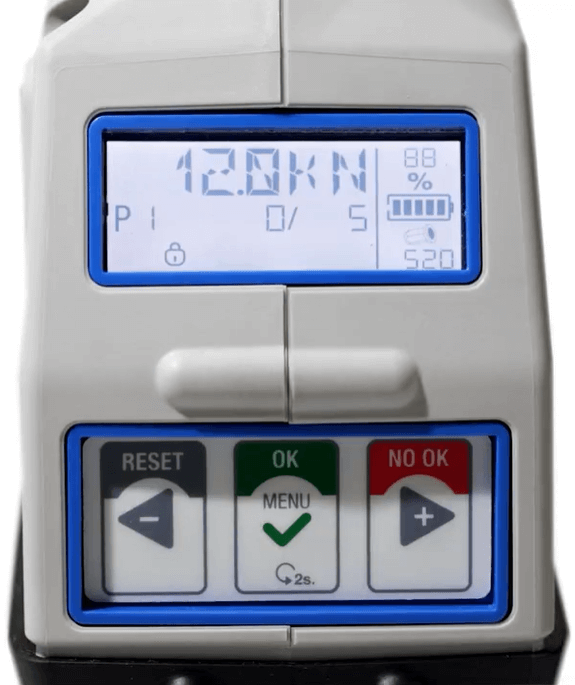

• Upgraded Panel Display: Easily change your program to initiate the processing monitoring for the specific application.

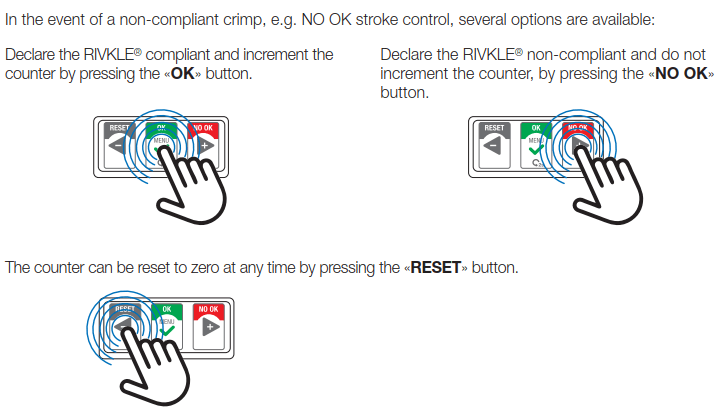

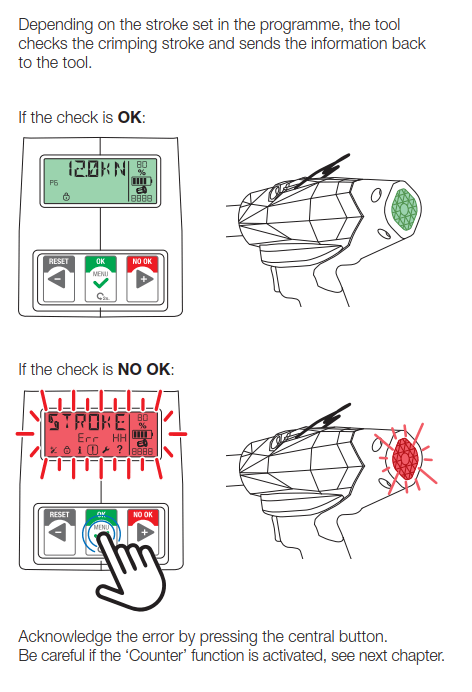

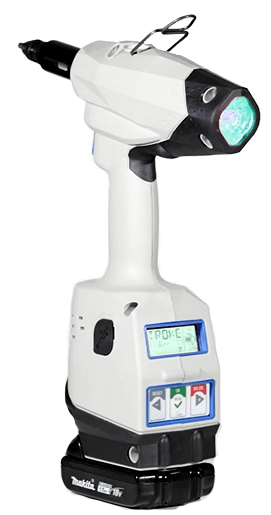

• LED Rear Light: Signals to the operator if the install meets the required specifications. Receive green or red–light indicators to show if your installation is a go (good) or it is a no-go (bad). Additionally, the tool can be programmed to lock up on an alarm/error and require a manual reset. This type of process monitoring will ensure quality and consistent results.

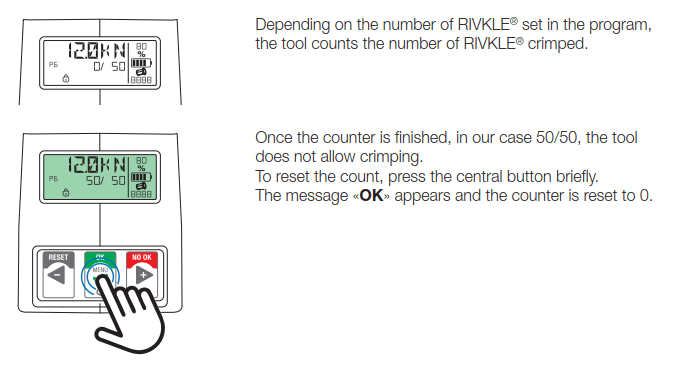

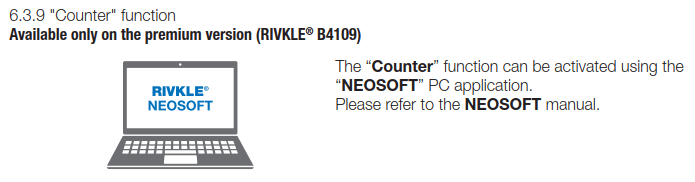

• Counting Functionality: The NEO B109 tool can count total number of installs (i.e. 1,000 fasteners installed today), number of installs per product (i.e. 5 fasteners per bumper) and number of products completed (i.e. 10 bumpers today).

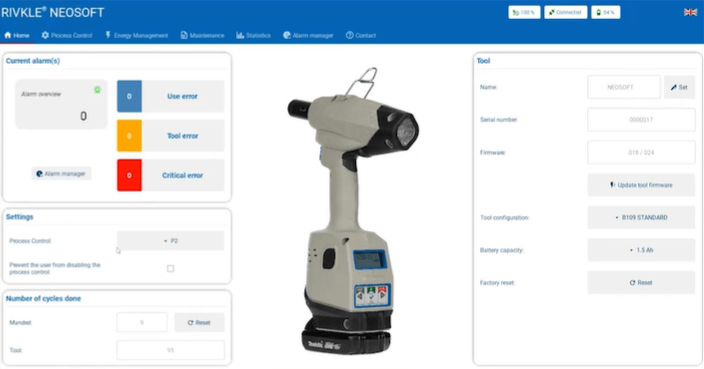

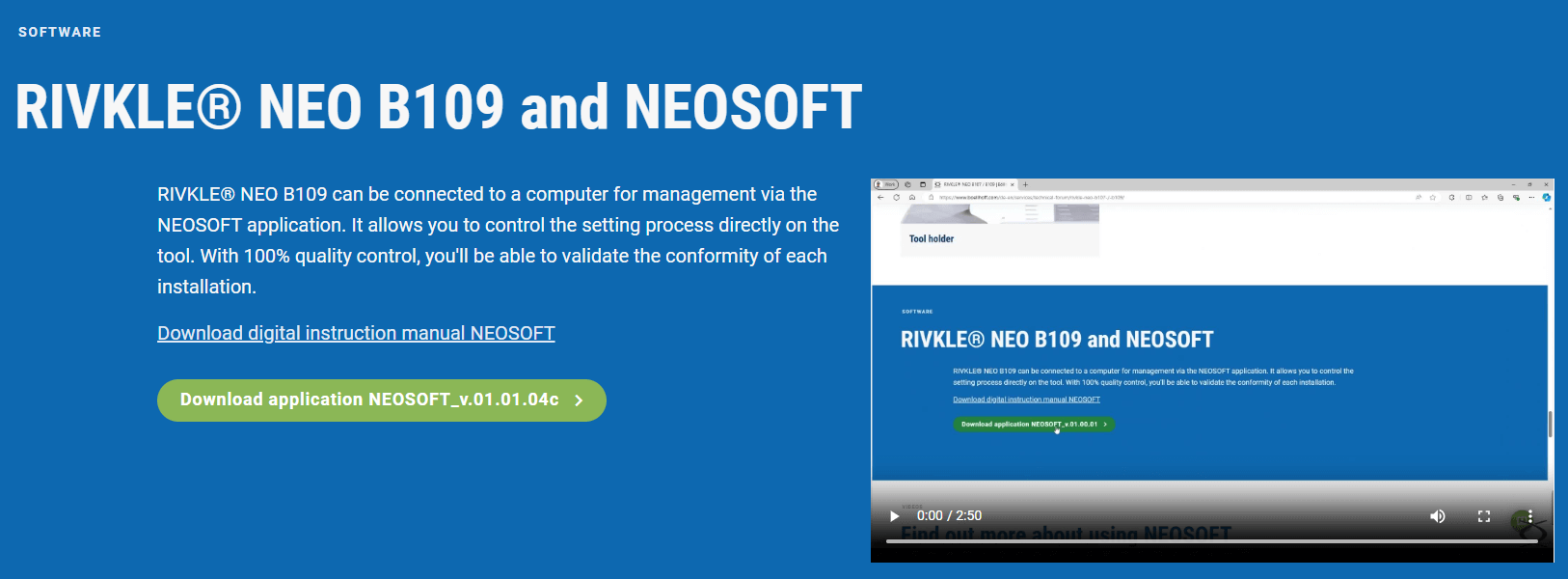

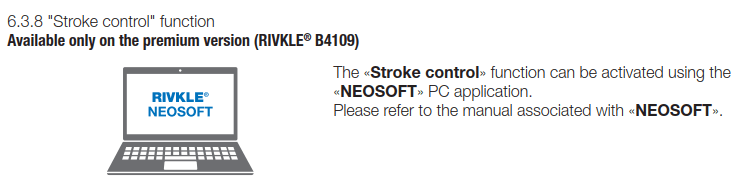

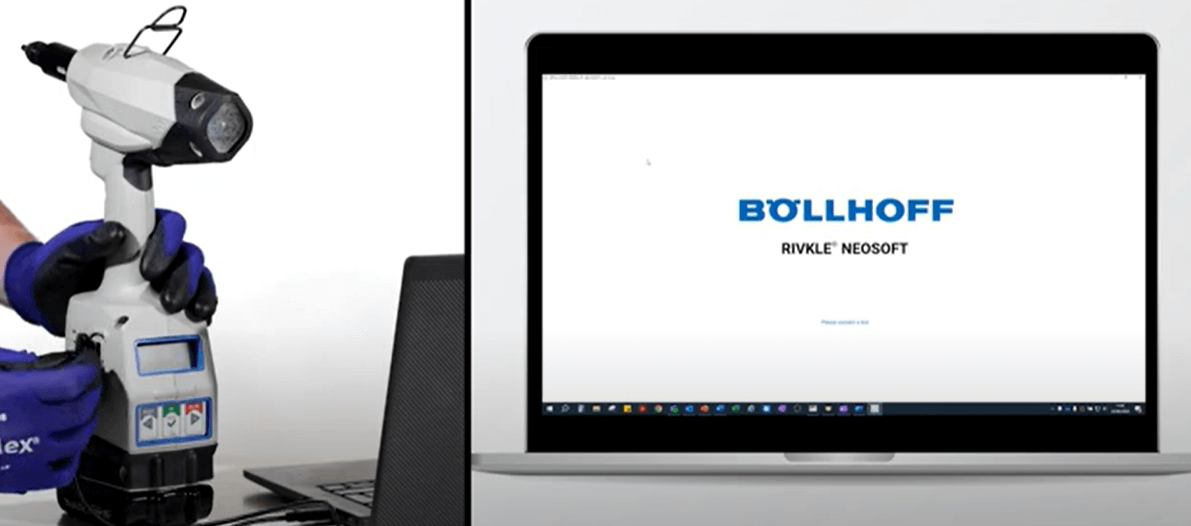

• New! NEOSOFT Software: This software is loaded to a computer, then via USB cable, the computer talks to the B109 tool, giving the user complete control over the entire installation process. NEOSOFT Software allows the user to establish program settings for each application the tool is used in, performance reviews of recent installations (good, questionable, bad), installation count records (overall counts and by application), alarm management (should a bad install occur), and so much more! Watch the videos and view more photos below to learn more!

Features of the B4107 & B4109, see our B4107 page for a more detailed breakdown of these:

• Faster Cycle Times (25% faster!)
• Improved Ergonomics & Durability (25% lighter!)
• Extended Battery Life (1,000+ installs per charge, depending on application)
• Enhanced User Interface (see above “process monitoring” information)

The Bollhoff NEO B109 / Rivet Nut USA™ B4109 is the top-of-the-line model designed for the fastest and most efficient installation of RIVNUT® (blind rivet nuts), nutserts, and threaded inserts. Engineered with the advanced technology from NEOSOFT software, it ensures consistently high-quality installations every time.

For operations not requiring process monitoring, consider the B4107, Bollhoff NEO B107. It offers the same quality installation every time, at a lower budget-friendly price.

Bollhoff | B4109 NEO B109 Operating Information:

• Step 1: The fastener will auto-feed onto the installation tool.
• Step 2: A single trigger pull will complete the entire installation sequence.
• Step 3: The tool will automatically reverse out of installed fastener.
• Cycle Time: Up to 30 installs per minute.
• Ergonomic Grip and Balance: Added operator comfort (additional ergonomic accessories available, just ask!).
• Pull Force: 4,000 lbf or 18 kN
• Stroke: .295 in or 7.5 mm
• Manufacturer Part Number: Bollhoff B109 | Rivet Nut USA™ B4109
• Battery Information: Average 1,000 cycles per 2AH battery charge for a typical steel M6 rivet nut. Purchase authorized batteries from Rivet Nut USA™.

  • Warranty Advisory – Battery & Charger Requirement
    Due to the high dollar value of this tool and its sensitive internal components, it is essential to only use genuine Makita batteries with your tool. We strongly recommend purchasing your Makita batteries from Rivet Nut USA™, a division of Cardinal Components, Inc. We guarantee 100% genuine Makita products, each serial-numbered for full traceability. Using third-party or non-Makita batteries can lead to power irregularities that will damage the internals of the tool, lead to higher repair costs, and will void the warranty (confirmed through diagnostic error coding). Thank you for choosing the best battery-operated tool on the market, and for investing in the right steps to keep it performing at its best.

Unified & Metric Thread Capabilities:

Unified Rivet Nuts: 4-40, 6-32, 8-32, 10-24, 10-32, 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24
Metric Rivet Nuts: M3, M4, M5, M6, M8, M10

• Mandrel & Anvil required for each thread size. These are considered consumables of the tool, please keep backup(s) on hand!
• Please consult us on your exact fastener and application to assure you invest in the most capable tool for the job.
  • Note: Material type of fastener is critical. Example: Install tool may be set up for a 1/2-13 rivet nut, but tool is only capable of installing a soft aluminum 1/2-13 rivet nut, and can not install a harder steel or hardest stainless steel 1/2-13 rivet nut. A heavier duty tool would be required to install the harder steel or hardest stainless steel 1/2-13 rivet nut. Call us with questions or send us a message to Request a Quote!

Case Study – Agriculture:











Read Case Study

Testimonial:

“What used to take hours in the field with a manual hand tool, now takes minutes with this battery-operated tool. We love it.”

Resources:

• B4109 Product Brochure
• B4109 Quick Start Guide
• B4109 Tool Catalog
• NEOSOFT Software Guide
• B4109 Tool Accessories
• B4109 Battery Warranty Information

We offer high-quality installation tooling solutions suitable for various industrial and domestic applications. For more information on the Rivet Nut USA™ B4109 Battery-Operated Tool, contact Rivet Nut USA™ today.
