Rivinox® | Rivibulb®

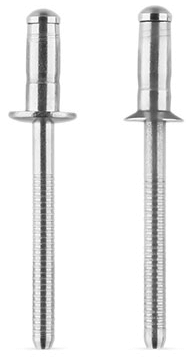

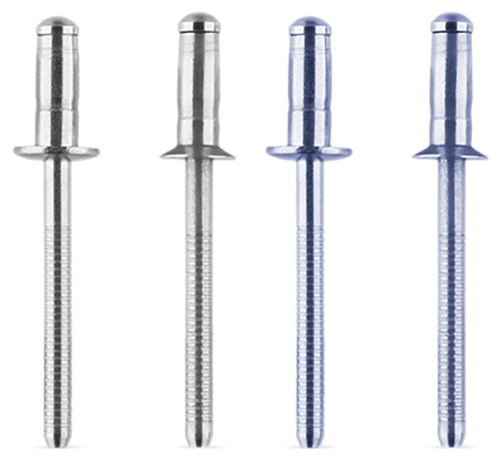

Rivinox® (pictured left) | Rivibulb® (pictured right)

Download the Rivinox® | Rivibulb® Catalog

Rivinox® Self-Washering
Stainless Steel Blind Rivets

The Rivinox® Self-Washering Stainless Steel Blind Rivet is a premium, high-retention fastener designed to deliver strong, vibration-resistant connections with a clean, finished appearance on both sides of your application. Because both the rivet body and mandrel are made from stainless steel, Rivinox® blind rivets offer corrosion and pull-through resistance for demanding environments like in marine applications.

• Self-Washering Back Side – When installed, the rivet forms a wide flange on the back side. This helps spread the load, increases shear force resistance and reduces the chance of pull-through in thin materials.
• Clean Finished Appearance – The dome head (front side) and clean secondary rear flange (back side) offers a professional, finished look from BOTH sides of the application.
• Stainless Steel Material – This helps give the installation added strength and durability for harsh environments.
• Locked Mandrel – The mandrel breaks off nearly flush with the head and stays locked in place to reduce vibration and loosening after installation.
• Strong & Reliable Performance – These rivets are suited for medium-duty applications.  The enhanced grip helps provide a reliable, secure connection.

Rivinox® Product Types

Rivinox® Rivets are available in common diameters and grip ranges to fit different material thicknesses:

• Diameters: 1/8″, 5/32″, 3/16″  (special sizes available upon request at a higher min order qty)
• Grip Ranges: From thin sheet metal to thicker stacked materials
• Head Style: Dome head
• Material: Stainless steel

Rivinox® Product Types

High-Strength Blind Fastening for Demanding Applications

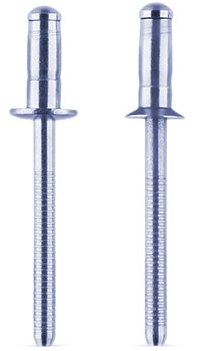

The Rivibulb® is similar in nature to the Rivinox® (see above for more information on the Rivinox®).  The Rivibulb® is a steel zinc-plated mandrel and steel zinc-plated rivet body (Rivinox® is stainless steel). Rivibulb® rivets are compatible with standard blind rivet installation tools, including pneumatic and hydraulic systems. Proper tool selection ensures optimal bulb formation and maximum joint performance.

Rivibulb® Product Types

Rivibulb® Rivets are available in common diameters and grip ranges to fit different material thicknesses:

• Diameters:  1/8″; 5/32″; 3/16″; 6mm (special sizes available upon request at a higher min order qty)
• Grip Ranges: From thin sheet metal to thicker stacked materials
• Head Style: Dome head
• Material: Steel
• Finish: Zinc plated for ROHS compliance

Rivibulb® Product Types

Rivinox® and Rivibulb® Blind Rivets perform well in applications including:

• Agricultural and construction equipment
• Appliance housings and enclosures
• Automotive frames and body assemblies
• Electronics and industrial equipment
• HVAC and material handling systems
• Industrial enclosures and structures
• Marine and outdoor equipment
• Rail and mass transit components
• Thin gauge sheet metal fabrication
• Truck and trailer manufacturing

Contact Rivet Nut USA™, a division of Cardinal Components, Inc., to get more information or to receive a quote for Rivinox® and Rivibulb® Blind Rivets from one of our knowledgeable team members. Ask about our manual, pneumatic, and battery-powered tools offerings for Rivinox® and Rivibulb® installation. We can help make sure you get the appropriate tool to match the Rivinox® and Rivibulb® rivet diameter and fit your application!
